Weapon racks: How many do I need



Here we layout a simple formula to estimate to number of weapon cabinets needed for an armory.

Send up your weapons and list and we will provide a quote and if requested a layout of the armory showing everything in place.
Armory Design Service  Or call us at (800)-651-8835

The flexibility of the SecureIt weapon storage platform makes it possible. Using the our 24/24 Rifle & Handgun Cabinet as the base you can quickly build out your armory or add to existing systems.
(also see: weapon Racks: How to build an armory)

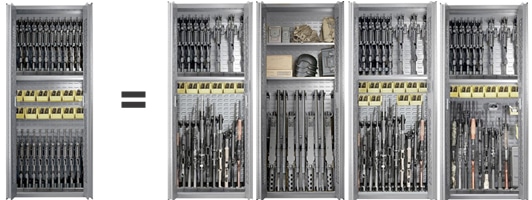

armory weapon racks

One 24/24 Cabinet can be configured in minutes to store a wide variety of weapons. No additional components are required.

So how many weapon racks do you need? Here you will learn how to quickly estimate how many weapon racks are required to complete your armory or weapon storage project.



The Basics:

To find the total number of weapon racks required:

total rifle spaces needed ÷ 24 = total racks needed

Definitions: A “rifle space” is the space required in the cabinet to hold one (1) rifle. Each cabinet holds 24 rifles.

So for basic rifles and shotguns: take the total quantity of weapons and divide by 24

Example: 162 rifles ÷ 24 = 6.75 weapon racks. Always round up, 7 weapon racks will hold all the rifles.

Larger Format Weapons

MK19 and M2 rack As you can see in the image below 1 MK19 or 1 M2HB requires the space of 3 rifles.

M2 MK19 Rack space

When doing your estimate you will multiply the number for MK19s or M2s by 3     – see example below





M240 and M249SAW As you can see in the image below 1 M240 or 1 M249 requires the space of 2 rifles.

M240 M249 weapon rack space

When doing your estimate you will multiply the number for M204 or M249s by 2     – see example below



The quantity of each weapon is multiplied by the number of spaces the weapon requires. Example from the previous image: MK19s take up 3 rifle spaces, in this case, two MK19s multiplied by three (spaces required per weapon) equals six spaces.

So let’s apply the formula: Total rifle spaces needed ÷ 24 = Total racks needed to a weapons list  to get the number of racks needed for this armory.

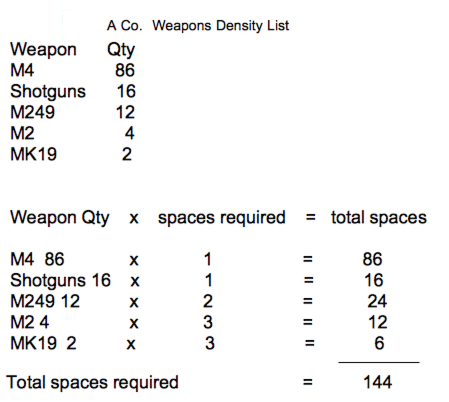

Here is an example using an actual Army weapons list list:

                 Example:

                                                                               144    Spaces  ÷  24 per cabinet   = 6 Model 84 weapon cabinets



144 ÷ 24 = 6 You can build this armory with 6 Model 24/24 weapon racks.

Handguns The 24/24 cabinet includes 12 storage bins each with a divider. Each bin holds 2 handguns. In the above example, 12 racks were ordered for 144 rifle spaces. These will also include bins for 144 handguns. In most cases, you will have plenty of room for handguns. If your handgun count is more than the total number of rifle spaces required then add a handgun cabinet.

Bins can also be used to store a wide variety of gear, ammunition, and components. They can be located anywhere within the cabinet above, below and around rifles and other weapons. Weapon size and rack reference chart

Need assistance?

Please do not hesitate to contact our Armory design group for assistance

SecureIt representatives are available to quickly help determine the best solution for your weapon storage needs. Sometimes a 5-minute phone call is all it takes to get answers. (800) 651-8835
